Create a data map showing individual dosing and observation records over time

Usage

datamap(
  dat,
  id = "ID",
  time = "TIME",
  event = "TYPE",
  events = NULL,
  group = NULL,
  ysize = 6,
  max_time = 500,
  time_unit = "d",
  line_color = "#B1B1B1",
  show_lines = TRUE
)

Arguments

dat

A data frame containing PK/PD data with columns for id, time, event, and optionally dose and group.

id

Column name for subject ID (defaults to "ID").

time

Column name for time variable (defaults to "TIME").

event

Column name for event type identifier (defaults to "TYPE").

events

A named list defining event types. Each element should have:

value: Numeric value in the event column identifying this event type
label: Display label for the legend
color: Point color (optional, defaults to grey for obs, red for dose)
shape: Point shape (optional, defaults vary by type)
size: Point size (optional, defaults vary by type)
alpha: Point alpha/transparency (optional, defaults vary by type)
line: Logical, whether to draw connecting lines for this event type (optional)

Examples of common event types:

dose: Dose events (TYPE = 0)
pk: PK observations (TYPE = 1)
pd: PD observations (TYPE = 2)

If NULL, uses default NONMEM EVID events with doses (1) and observations (0).

group

Column name for group identifier (optional, used for faceting).

ysize

Font size for y-axis text (defaults to 6).

max_time

Maximum time to display on y-axis (defaults to 500).

time_unit

Unit for time axis label ("d" for days, "h" for hours, defaults to "d").

line_color

Color for connecting lines (defaults to "#B1B1B1").

show_lines

Logical, whether to show connecting lines (defaults to TRUE).

Value

A ggplot2 object showing individual data records over time.

Examples

# Create sample data
sample_data <- data.frame(
  ID = rep(1:3, each = 4),
  TIME = rep(c(0, 1, 12, 24), 3),
  TYPE = rep(c(1, 0, 0, 0), 3),
  stringsAsFactors = FALSE
)

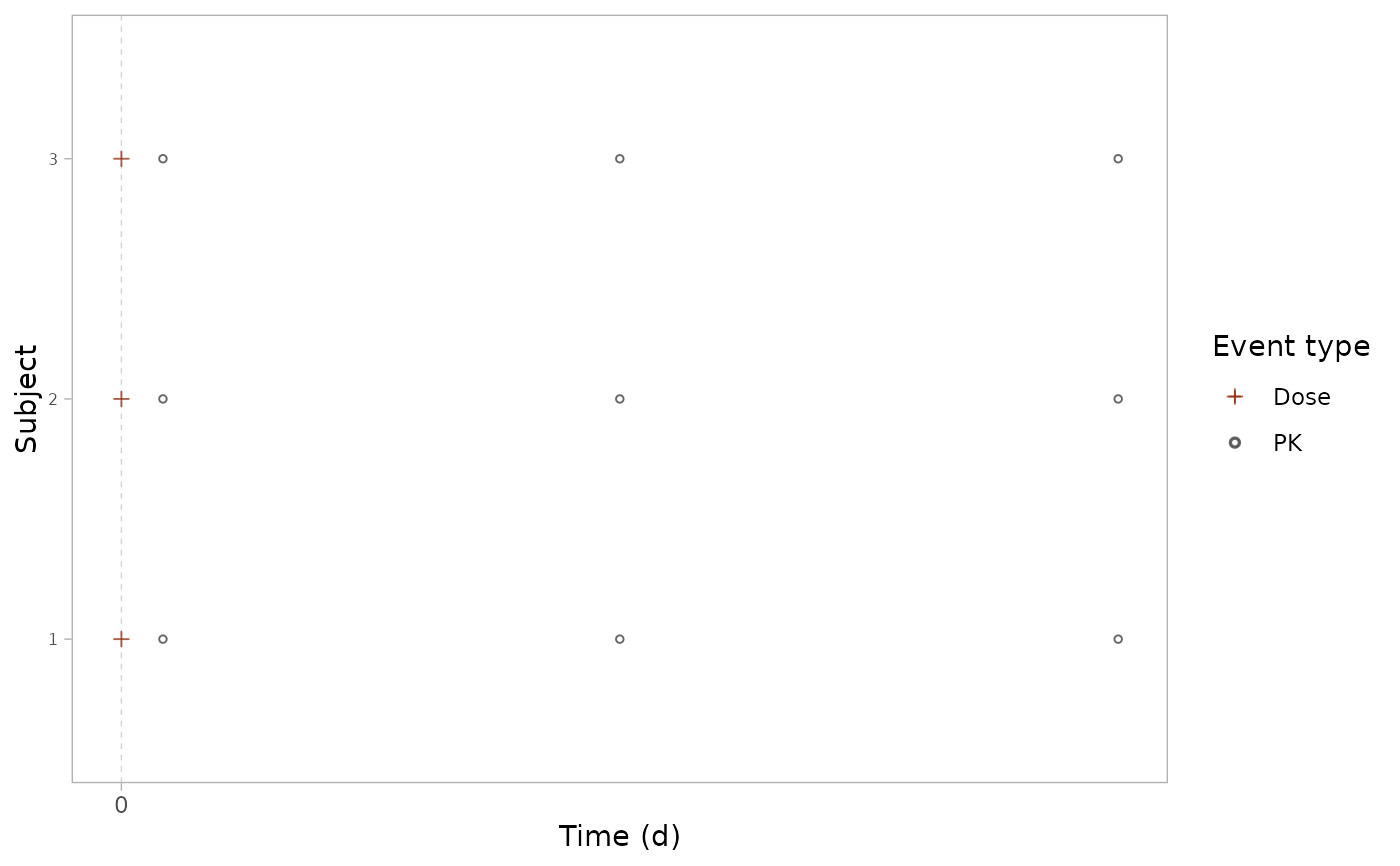

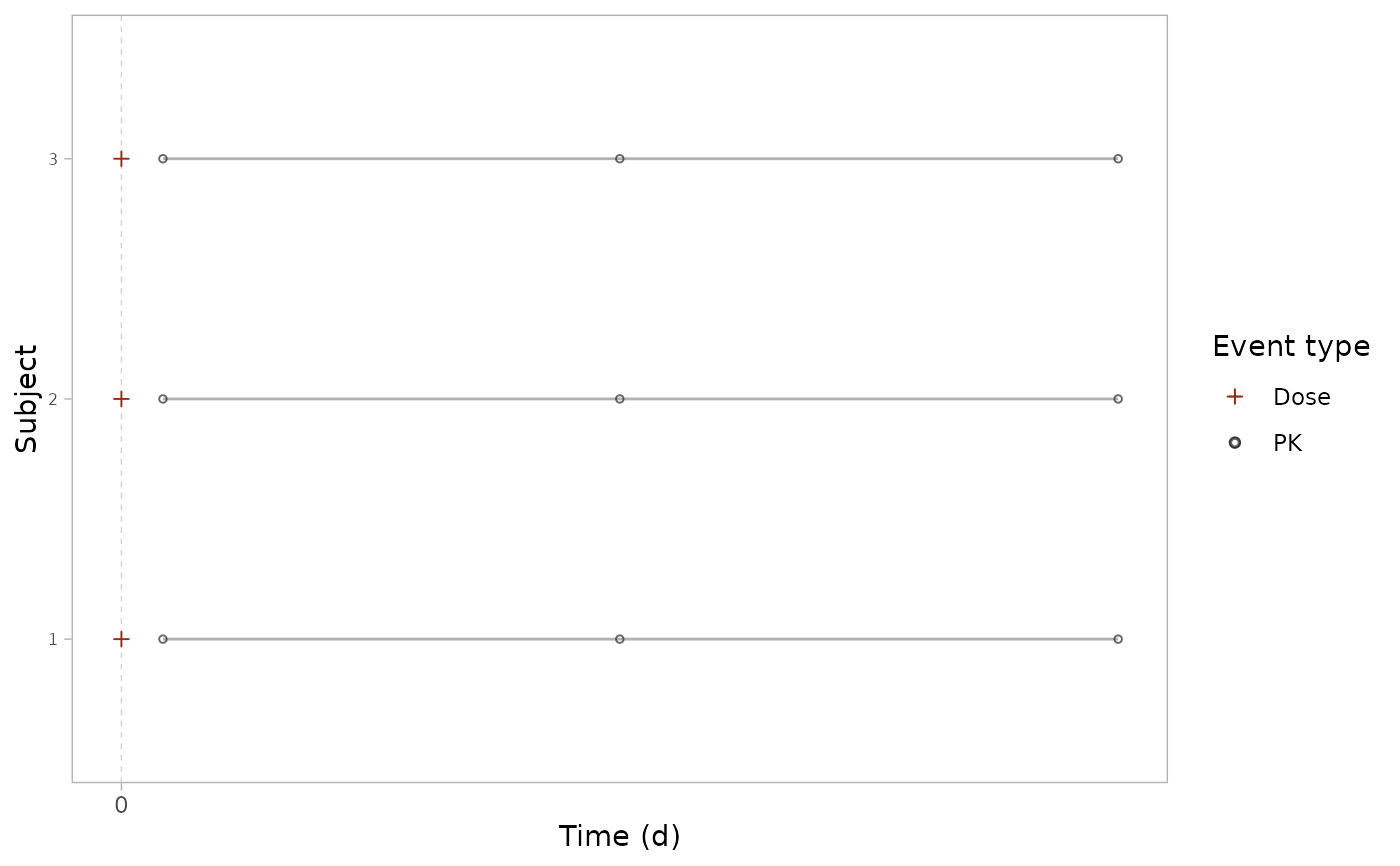

# Default: dose and PK observations
if (FALSE) { # \dontrun{
datamap(sample_data)
} # }

# With custom events
events <- list(
  dose = list(value = 1, label = "Dose", color = "#902C10", shape = 3, size = 1.5),
  pk = list(value = 0, label = "PK", color = "#333333", shape = 1, size = 1)
)
if (FALSE) { # \dontrun{
datamap(sample_data, events = events)
} # }
